Our gas meter boxes/cabinets use layers of GRP laminate with encapsulated integral stiffening, manufactured from a fire-retardant polyester resin conforming to BS 476 part 7 class 2 – ‘Surface Spread of Frame’ and reinforced with chopped strand glass mat.

Where required the meter box rear, side walls, and doors, can also be fully comprised of a double skin sandwich construction with the core material being 18mm plywood.

Each Gas meter box in our range has a life expectancy in excess of 25 years and has a minimum of 3% ventilation as directed by PRS 35 December 2008.

Gas Meter Boxes – Examples

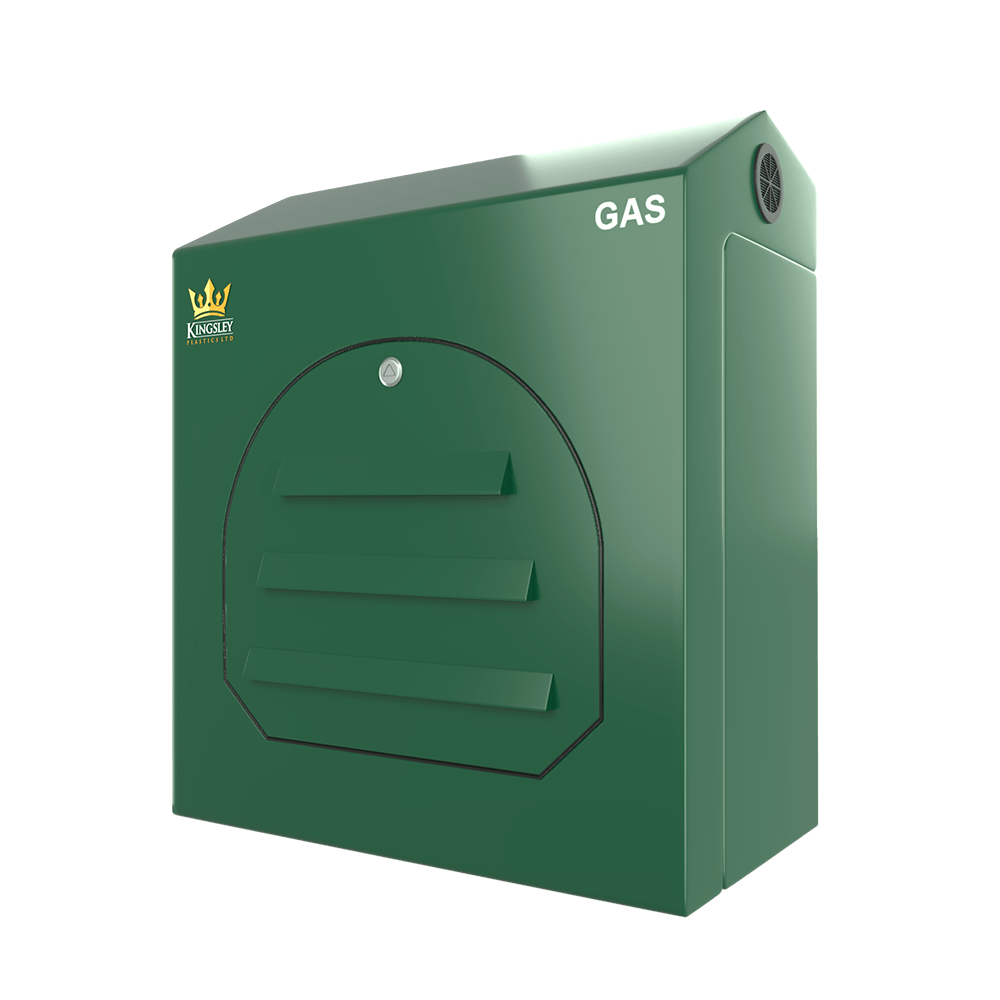

Gas Cabinet - No.2 Free Standing

Gas Meter Box – No.2 Free Standing

Suit U16 Low & Medium Pressure Gas Meters

708mm wide x 390mm deep x 828mm high

Complete with 3% ventilation as standard

Standard Colour BS 14-C-39 British Racing green, all others available in the BS 4800 or RAL ranges.

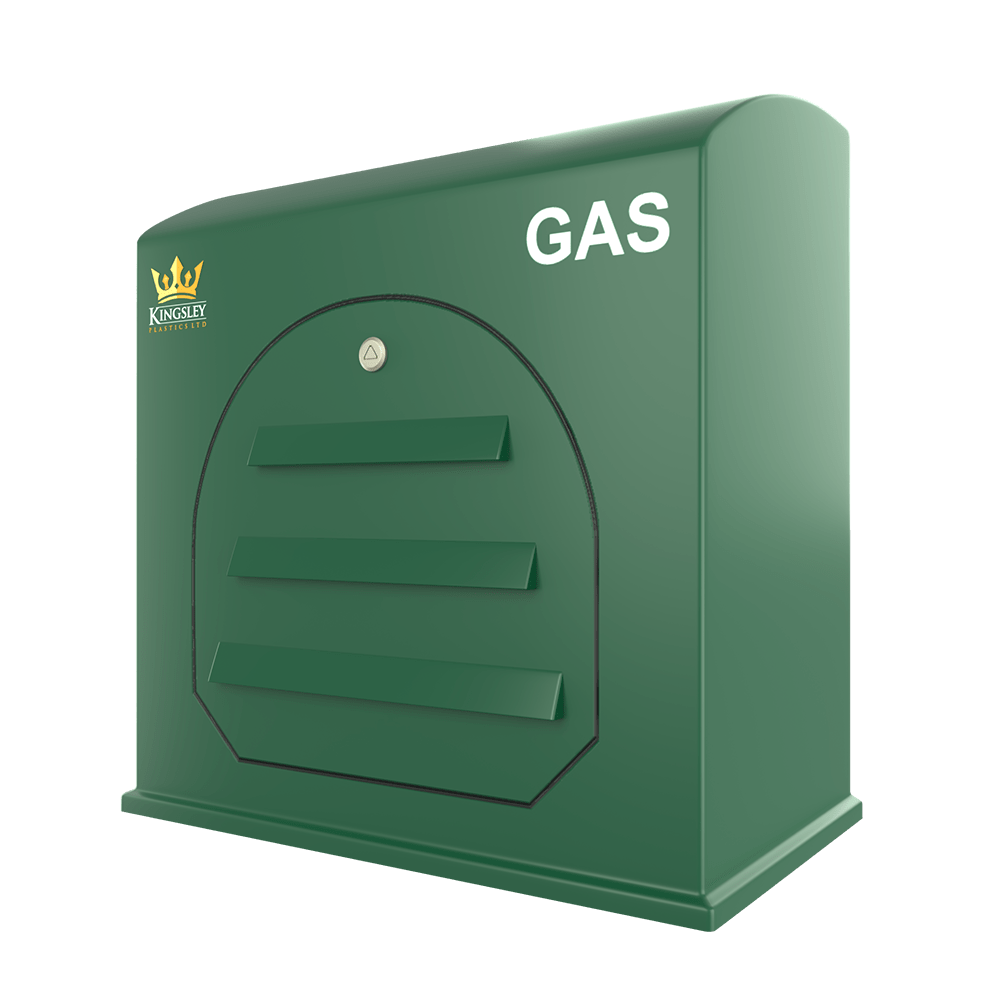

Gas Cabinet - No.2 Wall Mounted

Gas Meter Box – No.2 Wall Mounted

To fit U16 Low-Pressure Gas Meters

660mm wide x 415mm deep x 740mm high

Complete with 3% ventilation as standard

Standard Colour BS 14-C-39 British Racing green, all others available in the BS 4800 or RAL ranges.



Gas Meter Cabinet - No.3 WM

Gas Meter Box No.3 – Wall Mounted

Suitable for U25 Low-Pressure Gas Meters

915mm wide x 385mm deep x 885mm high

Complete with 3% ventilation as standard.

Standard Colour BS 14-C-39 British Racing green, all others available in the BS 4800 or RAL ranges.



Gas Cabinet No.4

Gas Meter Box No.4

Suitable for U40 Low-pressure gas Meters

1020mm wide x 565mm deep x 1020mm high

Complete with 3% ventilation as standard.

Standard Colour BS 14-C-39 British Racing green, all others available in the BS 4800 or RAL ranges.

Gas Meter Boxes – Optional Extras

  • Insulation to 0.6 W/M²/°C
  • Electrics to 16th Edition
  • Wired glass inspection windows
  • Plumbing
  • Side vents
  • Hinged cable entry cat flap
  • Internal partitions
  • Integral floor
  • Explosion Relief

We also offer next day delivery on many of our gas meter boxes so visit our online shop today or call +44 01837 83154 for more information.
